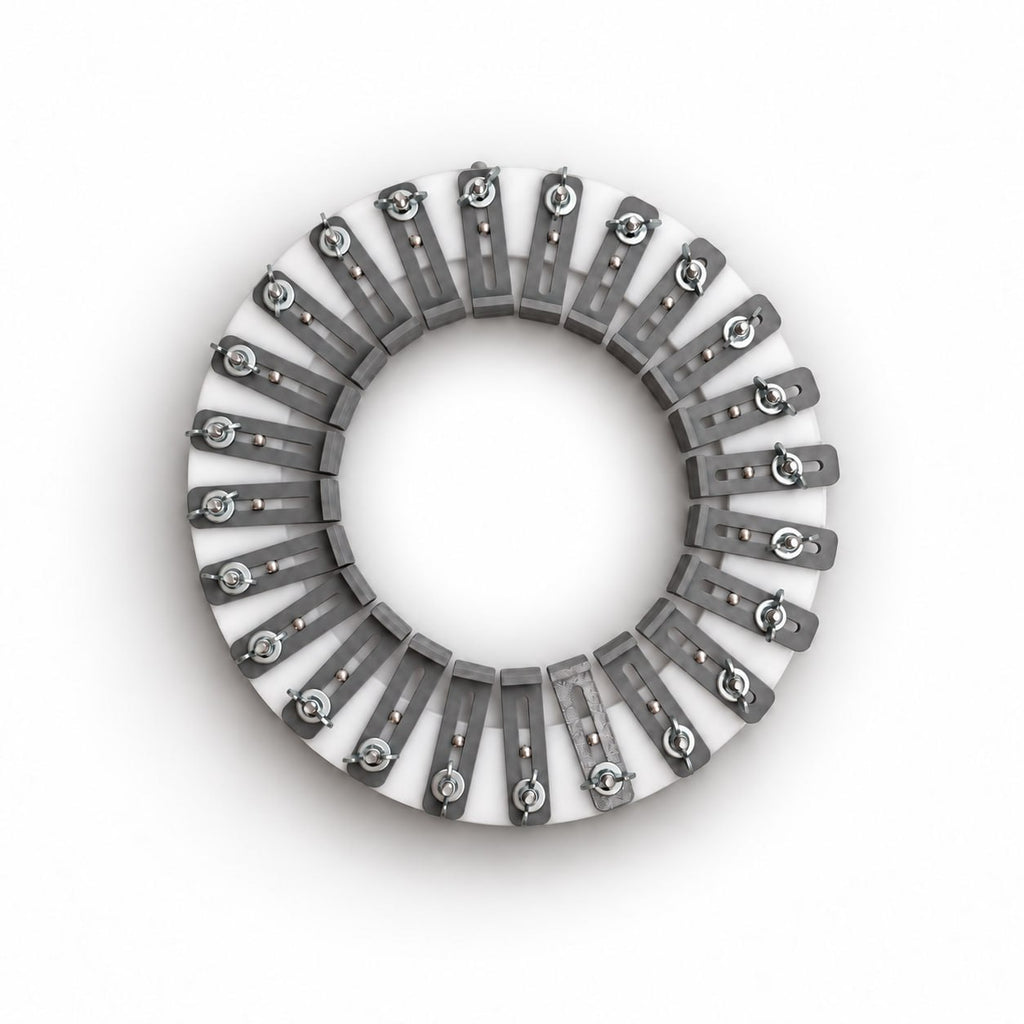

Top view of an acrylic hat conformateur with gray 3D-printed adjustable fingers, stainless steel hardware, and wing nuts for capturing an individual head contour during custom hat fitting.

Acrylic Hat Conformateur - Custom Hat Fitting Tool

$180.00
Skip to product information
Top view of an acrylic hat conformateur with gray 3D-printed adjustable fingers, stainless steel hardware, and wing nuts for capturing an individual head contour during custom hat fitting.
  • Top view of an acrylic hat conformateur with gray 3D-printed adjustable fingers, stainless steel hardware, and wing nuts for capturing an individual head contour during custom hat fitting.

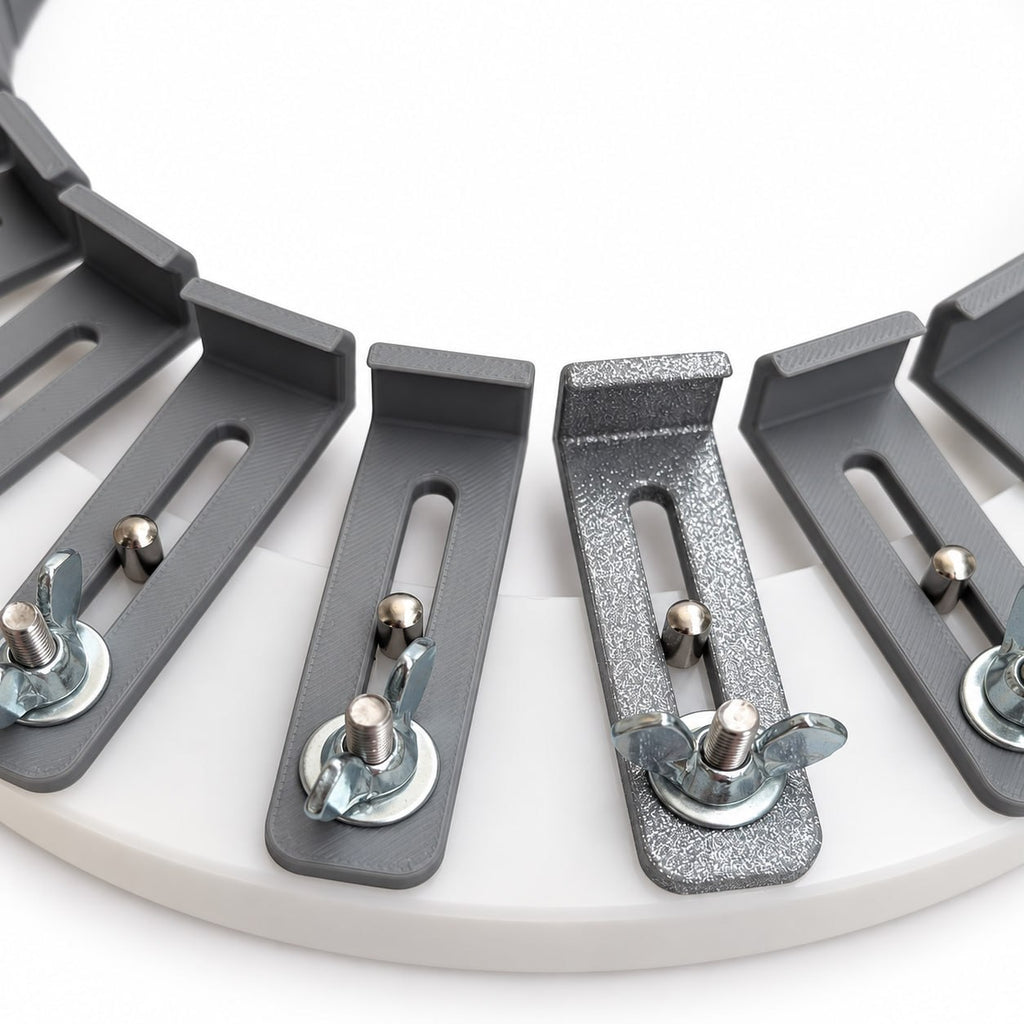

  • Detailed view of the 3D-printed conformateur fingers, slotted adjustment tracks, guide pins, and locking hardware mounted around the acrylic circular base.

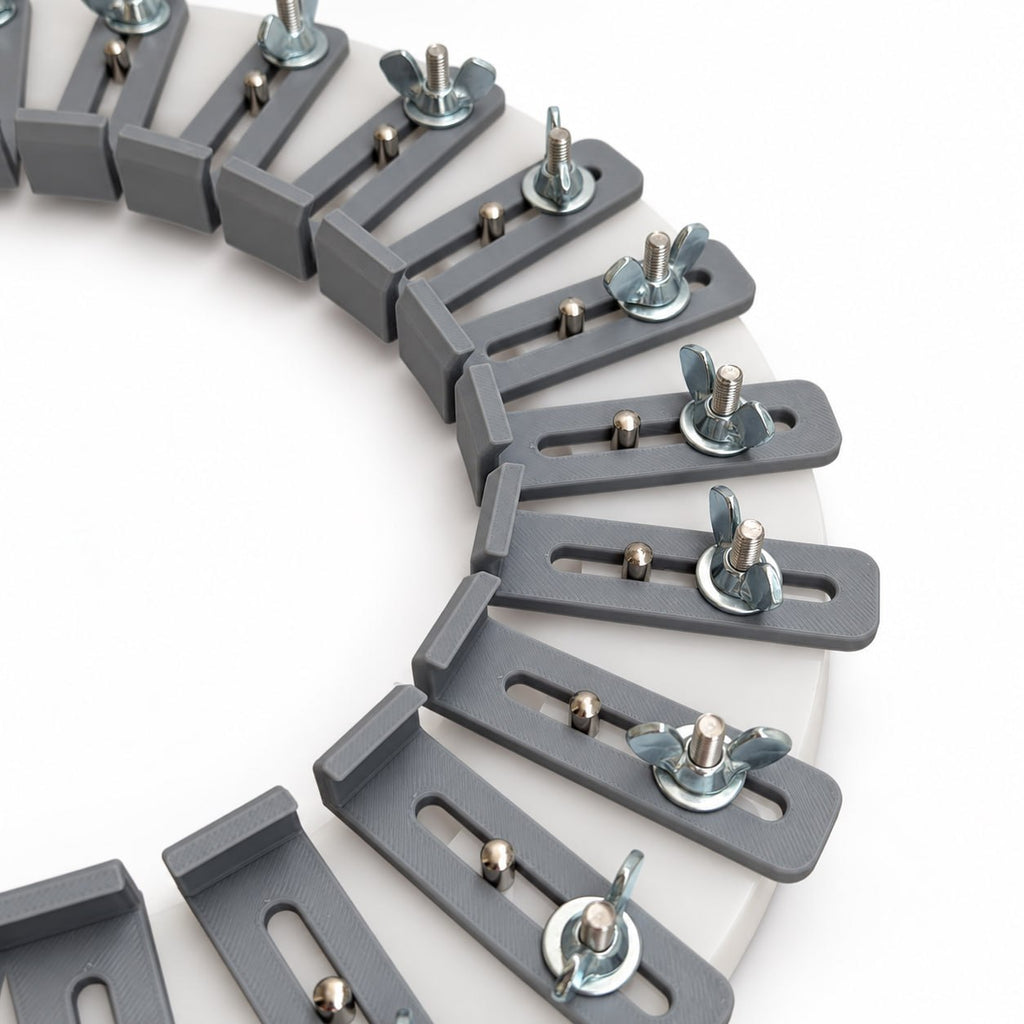

  • Close angled view of the acrylic hat conformateur adjustment system with movable gray fingers and stainless steel wing nuts for following and locking a customer’s head shape.

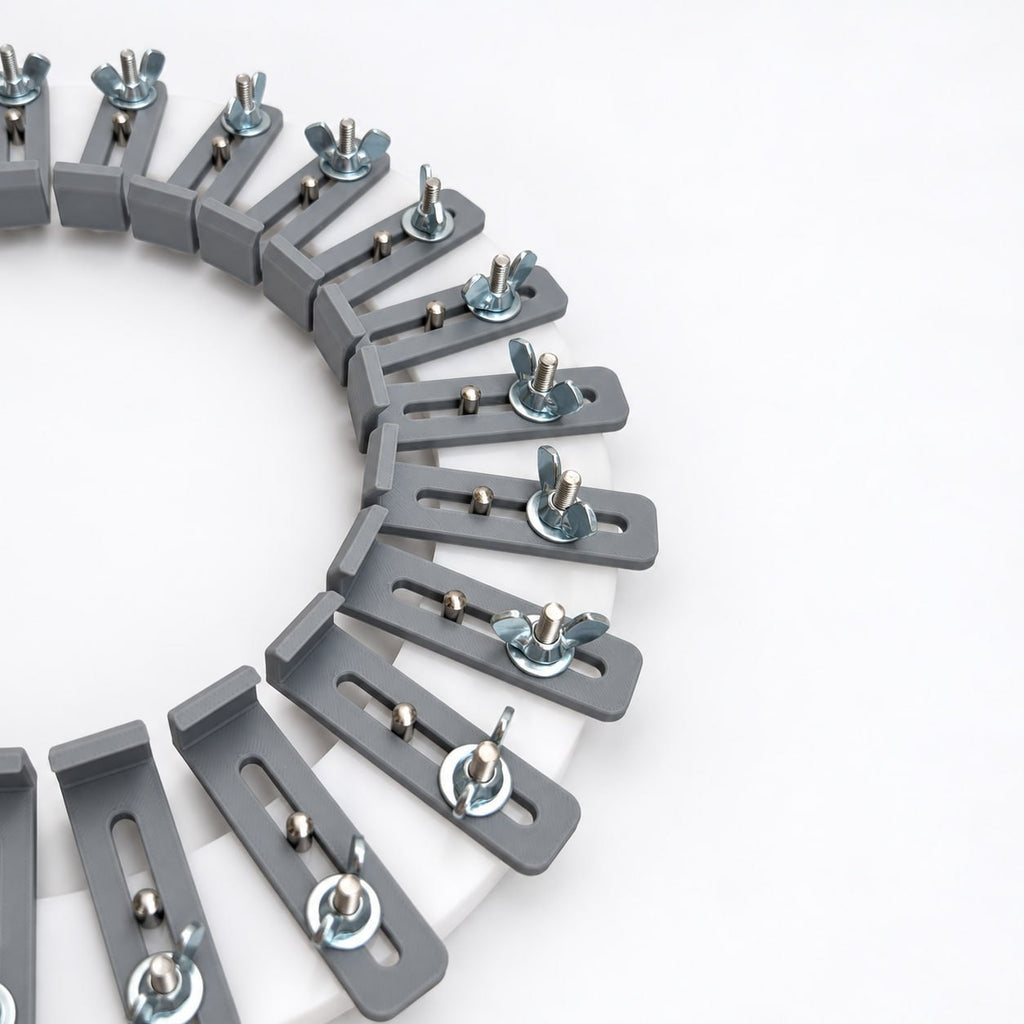

  • Angled close-up of gray adjustable fingers secured with metal washers and wing nuts on a white acrylic hat conformateur used to record individual head contours.

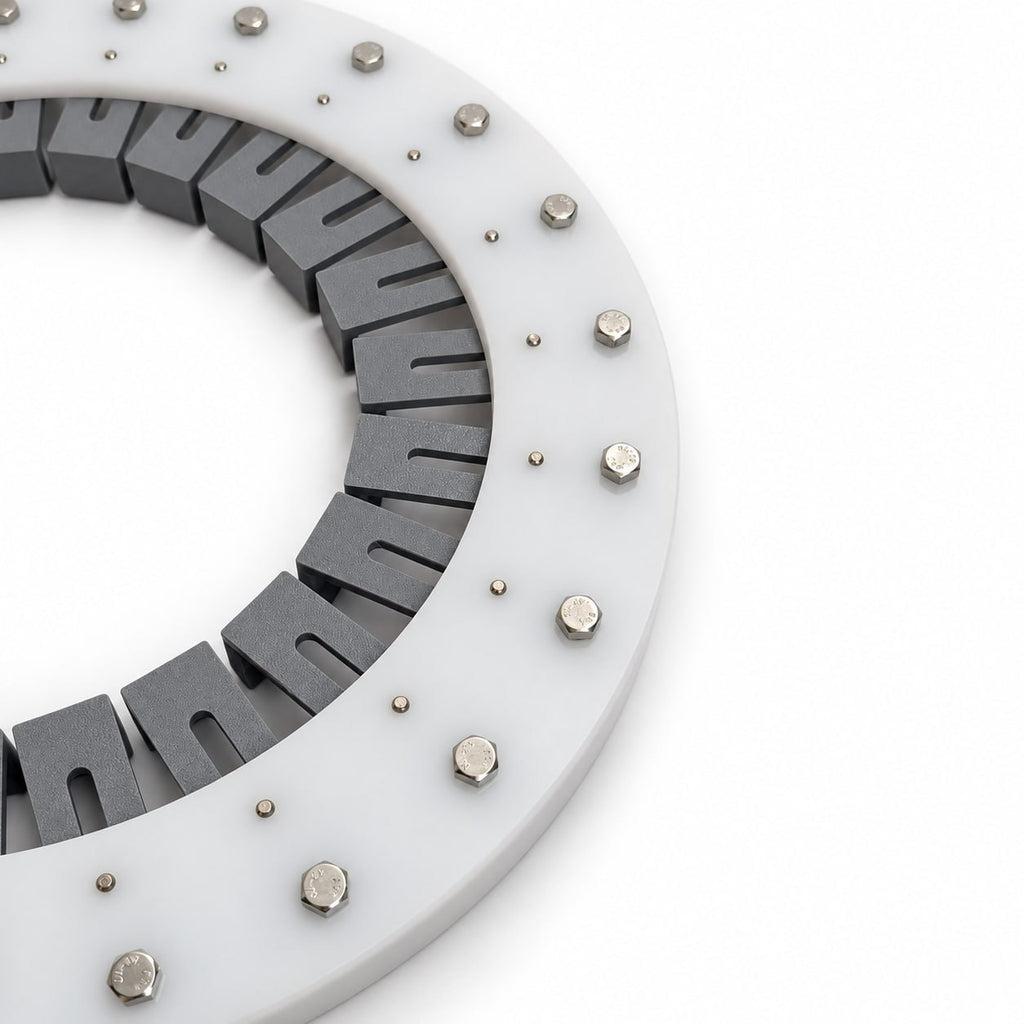

  • Close-up of the reverse side of an acrylic hat conformateur showing the thick circular base, stainless steel fasteners, guide pins, and gray 3D-printed fingers.

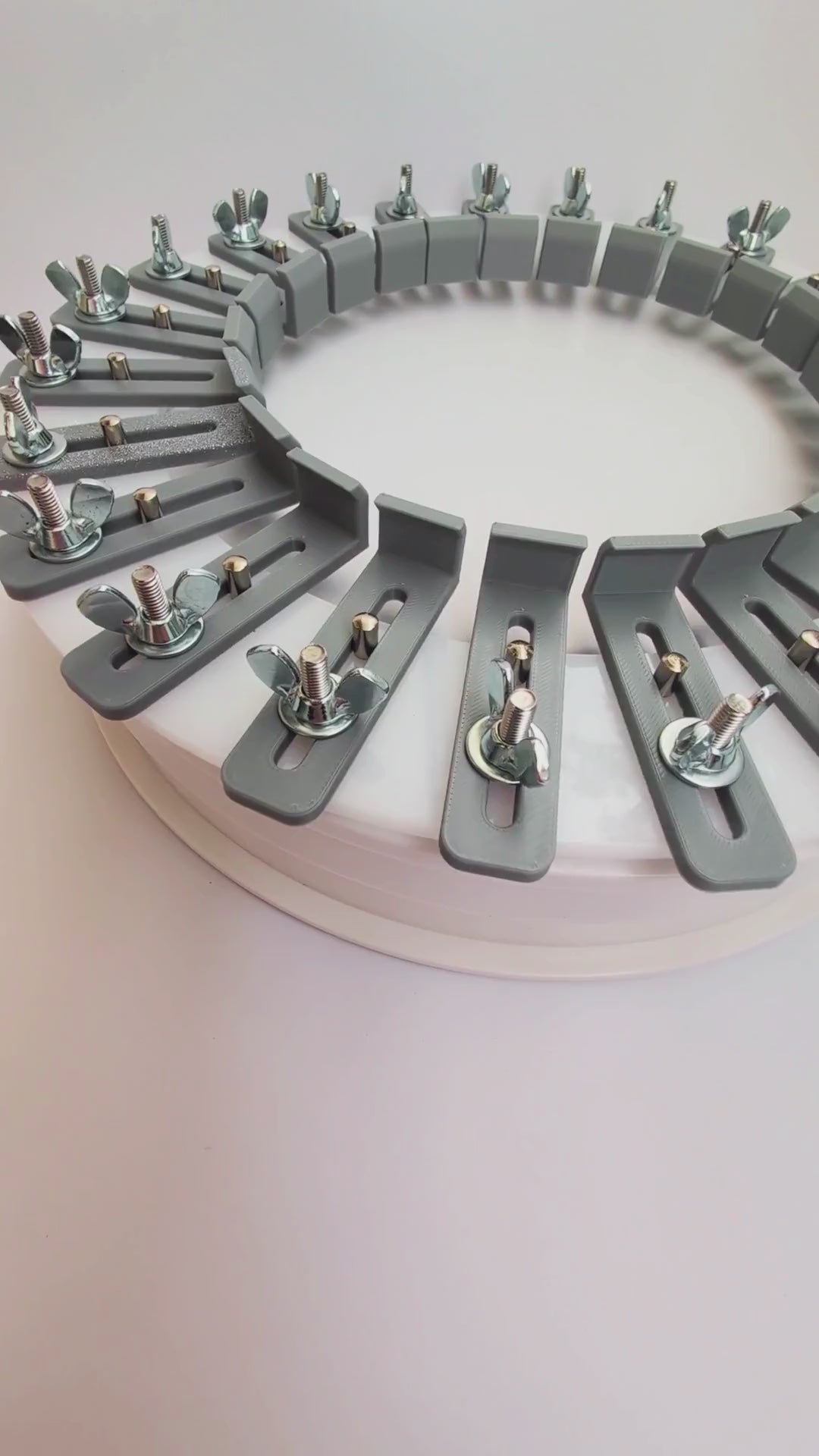

  • Video showing an acrylic hat conformer with individually adjustable 3D-printed fingers, stainless steel wing nuts, and guide pins used to capture a customer’s head shape for custom hat fitting.
  • Top view of an acrylic hat conformateur with gray 3D-printed adjustable fingers, stainless steel hardware, and wing nuts for capturing an individual head contour during custom hat fitting.
  • Detailed view of the 3D-printed conformateur fingers, slotted adjustment tracks, guide pins, and locking hardware mounted around the acrylic circular base.
  • Close angled view of the acrylic hat conformateur adjustment system with movable gray fingers and stainless steel wing nuts for following and locking a customer’s head shape.
  • Angled close-up of gray adjustable fingers secured with metal washers and wing nuts on a white acrylic hat conformateur used to record individual head contours.
  • Close-up of the reverse side of an acrylic hat conformateur showing the thick circular base, stainless steel fasteners, guide pins, and gray 3D-printed fingers.
  • Video showing an acrylic hat conformer with individually adjustable 3D-printed fingers, stainless steel wing nuts, and guide pins used to capture a customer’s head shape for custom hat fitting.
Acrylic Hat Conformateur - Custom Hat Fitting Tool

Acrylic Hat Conformateur - Custom Hat Fitting Tool

$180.00

The conformer with acrylic base and 3D-printed fingers create a stable, adjustable tool for capturing a customer’s individual head size and shape. Stainless steel hardware supports repeated workshop use, while each movable finger follows the natural contours of the head for more accurate custom hat fitting.

Unlike a standard circumference measurement, this hat conformer records the complete head outline. Once the fingers are adjusted, the wing nuts lock them securely in position so the captured shape can be transferred onto paper.

The paper outline can then be traced onto a wooden board and cut out to create a custom sizing form. This form may be used for stretching, shaping, and fitting a hat to the customer’s exact head contour.

Key features:

  • Thick acrylic circular base for stability

  • Individually adjustable 3D-printed fingers

  • Durable stainless steel hardware

  • Wing nuts for locking the captured shape

  • Records both head circumference and contour

  • Fits head circumferences up to 60 cm / 23.6 inches

  • Suitable for repeated professional workshop use

How to use:

  1. Place the conformer evenly on the customer’s head.

  2. Adjust the fingers until they gently follow the head contour.

  3. Tighten the wing nuts to secure each finger without excessive force.

  4. Carefully remove the tool while preserving the recorded shape.

  5. Transfer the captured outline onto paper.

  6. Trace the paper template onto a wooden board.

  7. Cut out the wooden oval to create an individual sizing form.

  8. Use the form as a guide for stretching, shaping, and fitting the hat.

This professional millinery tool is suitable for custom fedoras, western hats, dress hats, and other bespoke styles where circumference alone is not enough to achieve a precise and comfortable fit.
